Raith Rocket Bamboo 2WD 1st Generation
Raith Rocket Bamboo 2WD 1st Generation
Free shipping within Australia, USA and Europe.
Deck supplied with clear grip tape.
Shipping times:
USA and Canada: 4-5 days
Australia: 5-7 days
Europe: Back Order - 1 month wait
Share
Rocket Specifications
ABOUT THE BOARD
Designed for the rider that demands a lighter and more compact cruising electric skateboard. The Rocket is a super light and ultra compact electric skateboard with over 8 years spent in development. Utilizing the same cutting edge technology that powers the worlds fastest electric skateboard, the Rocket is perfect for coffee runs, commuting, carving and traveling.
~ Top speed 36km/h
~ Dual 2400W rated motors in direct drive configuration
~ 15-20km range (approximate - weight dependent)
~ Patented Knuckle Duster remote tailored for safety (3 torque modes)
~ Dual motor controller operating in FOC for silky smooth operation

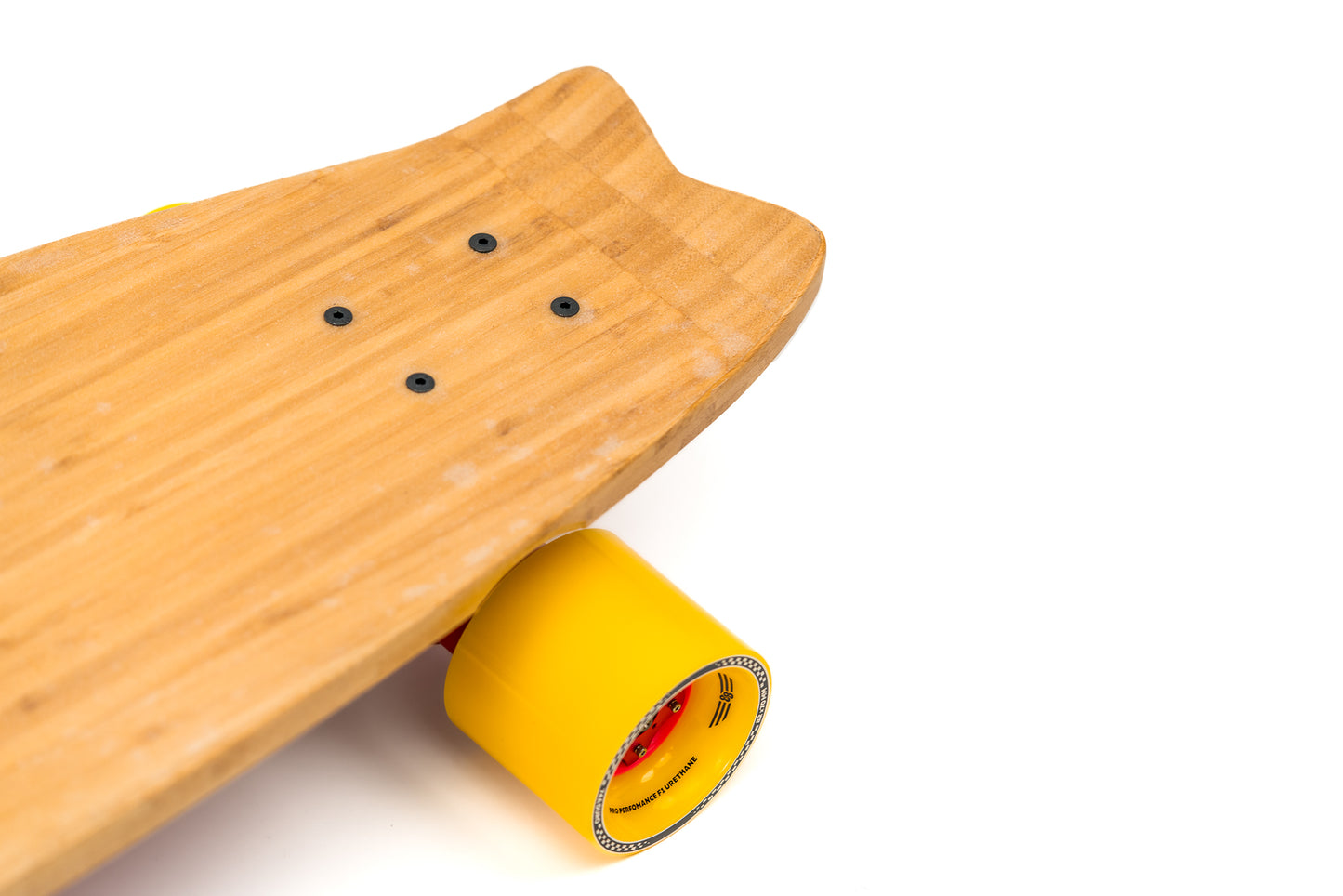

~ Bamboo Unibody deck with deep tub concave, 60 grit clear griptape

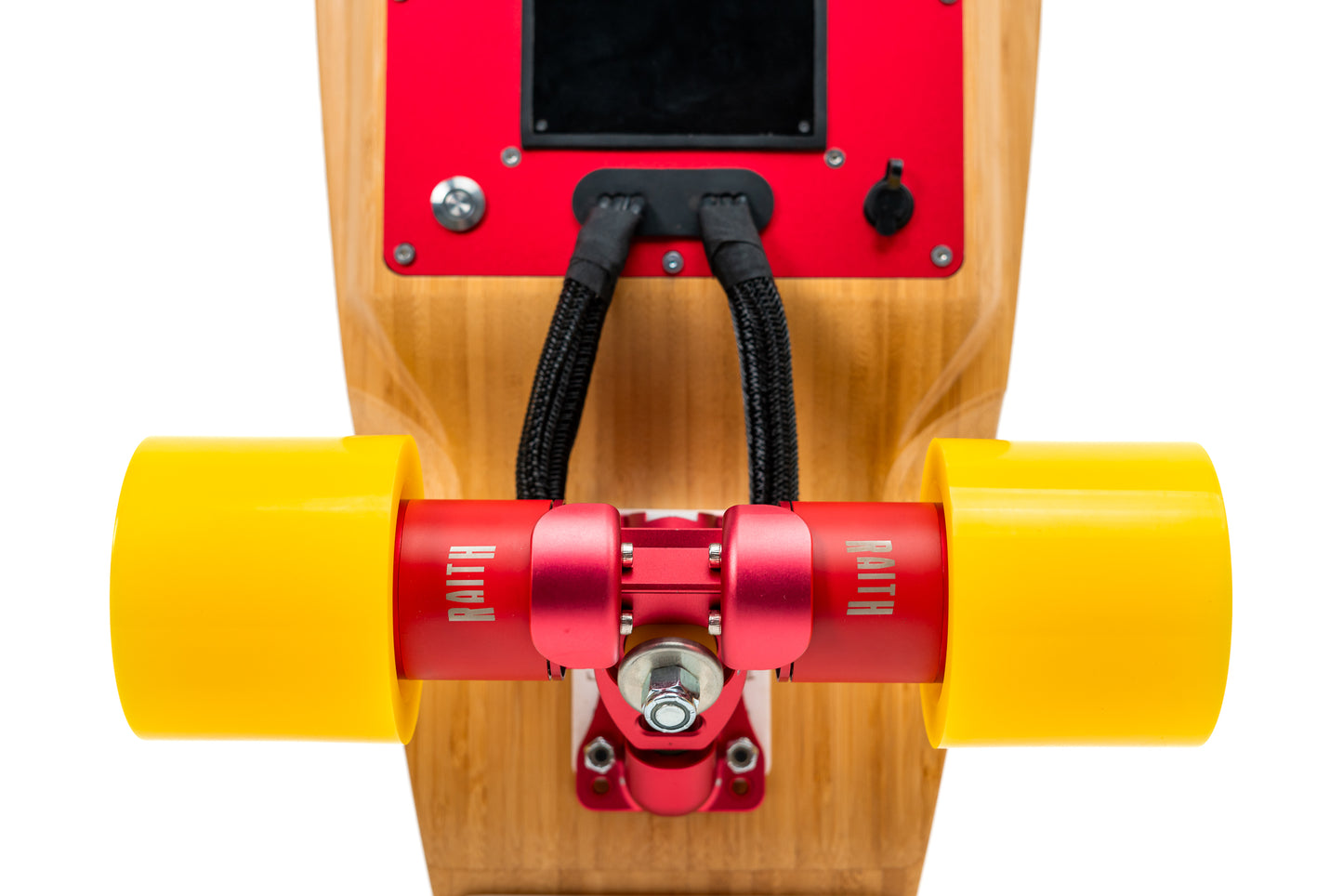

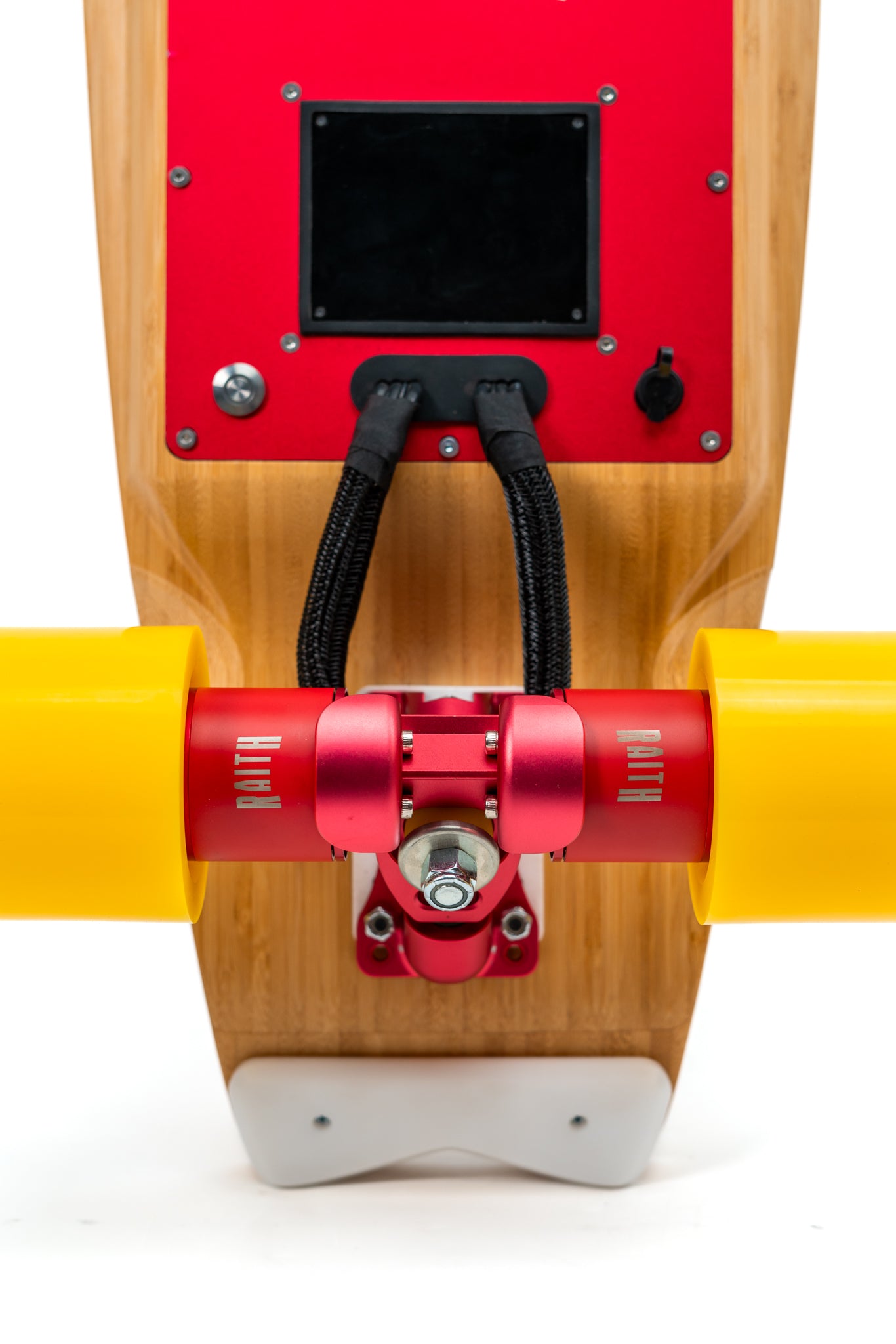

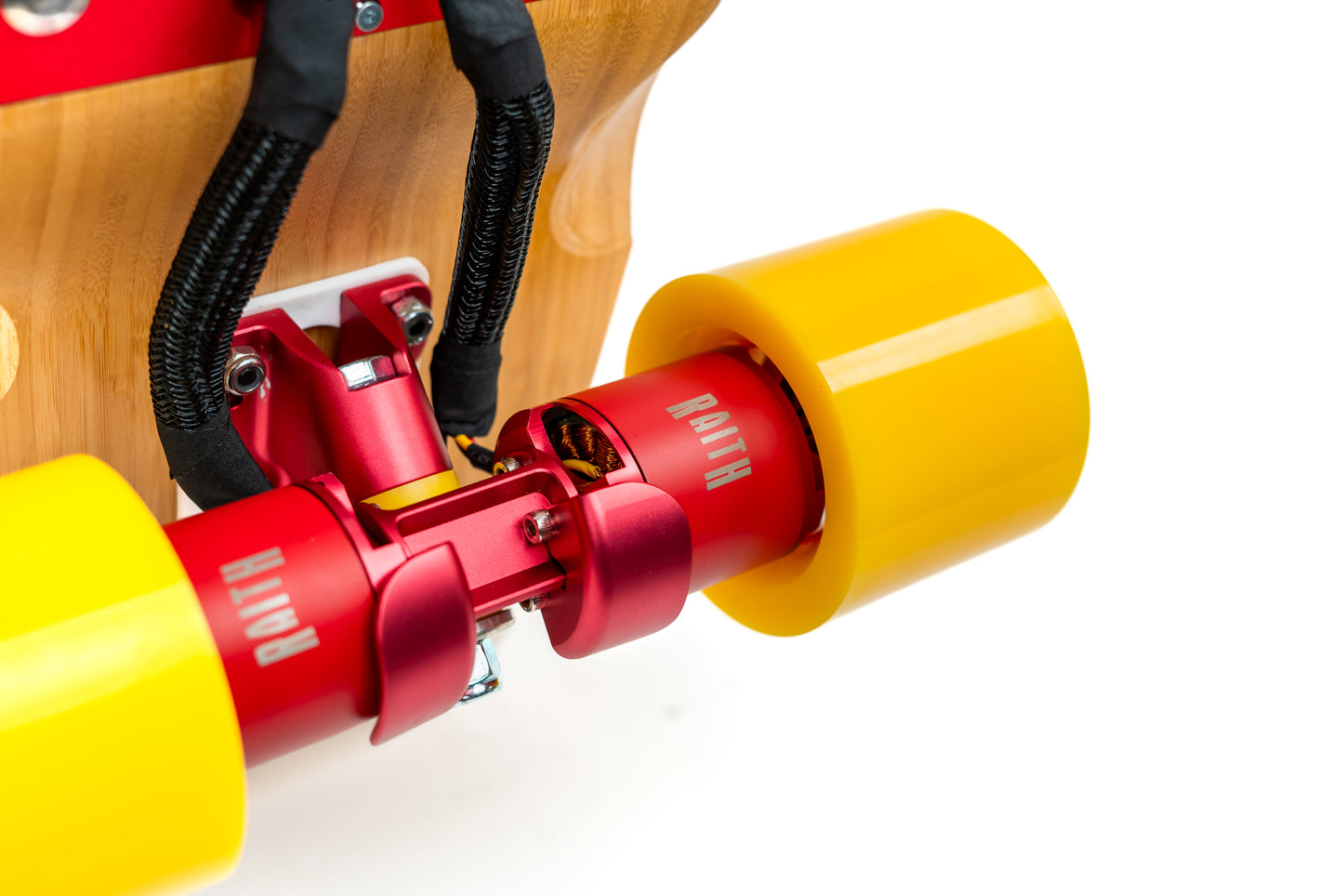

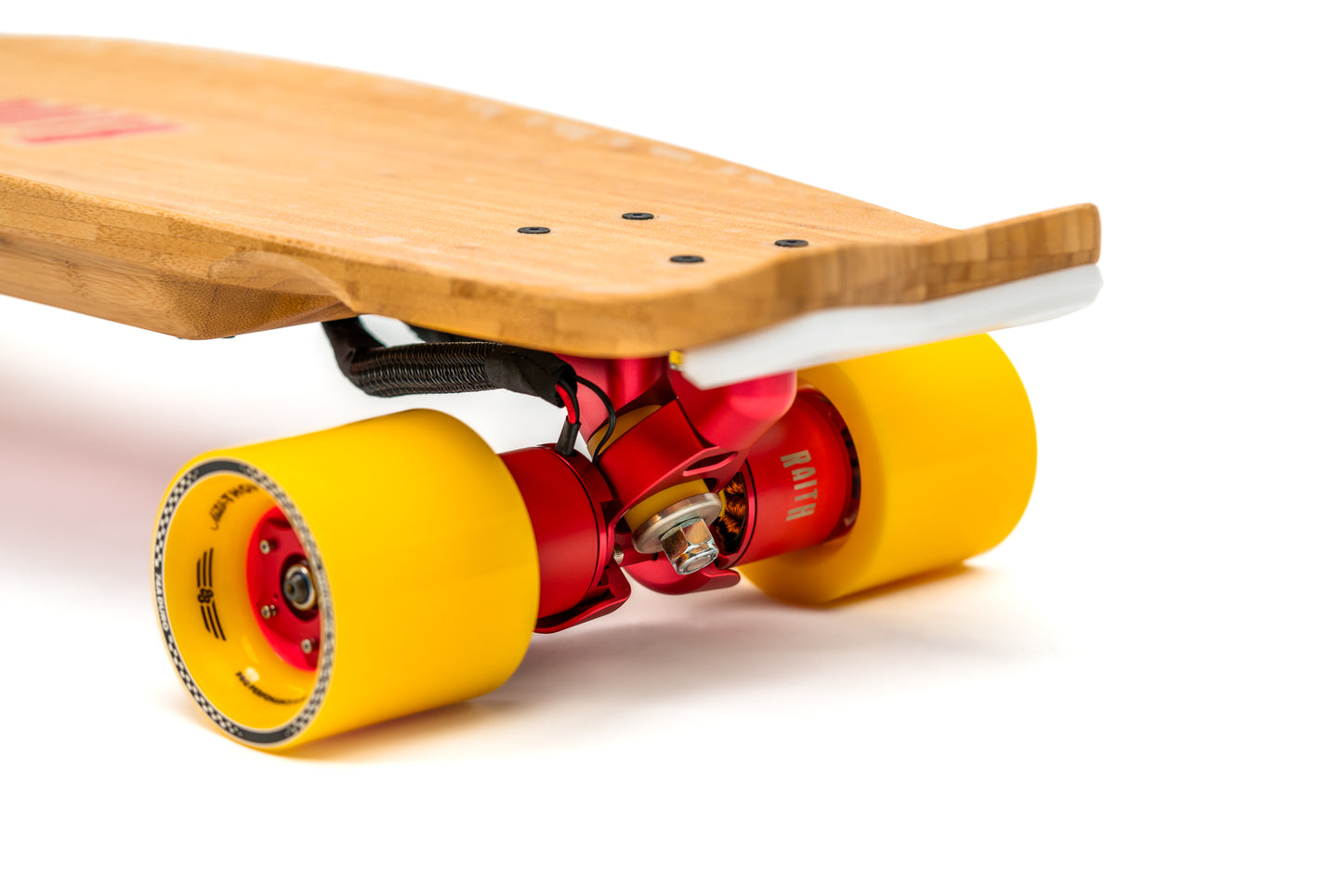

~ Patented direct drive rear precision truck
~ HFI sensorless start
~ Travel safe battery (148Wh)
Alternate wheels that fit the Rocket:
BOA Sigma 80mm Wheels
BOA Hatchling 90mm Wheels (Extra Risers Recommended) (Reduced Torque Available, Higher Top Speed)
BOA Constrictor 100mm Wheels (Extra Risers Recommended) (Reduced Torque Available, Higher Top Speed)
Orangatang Kegel 80mm Wheels
Orangatang Caguama 85mm Wheels (Extra Risers Recommended) (Reduced Torque Available, Higher Top Speed)
Orangatang Dad Bod 105mm Wheels (Extra Risers Recommended) (Reduced Torque Available, Higher Top Speed)
SPECS

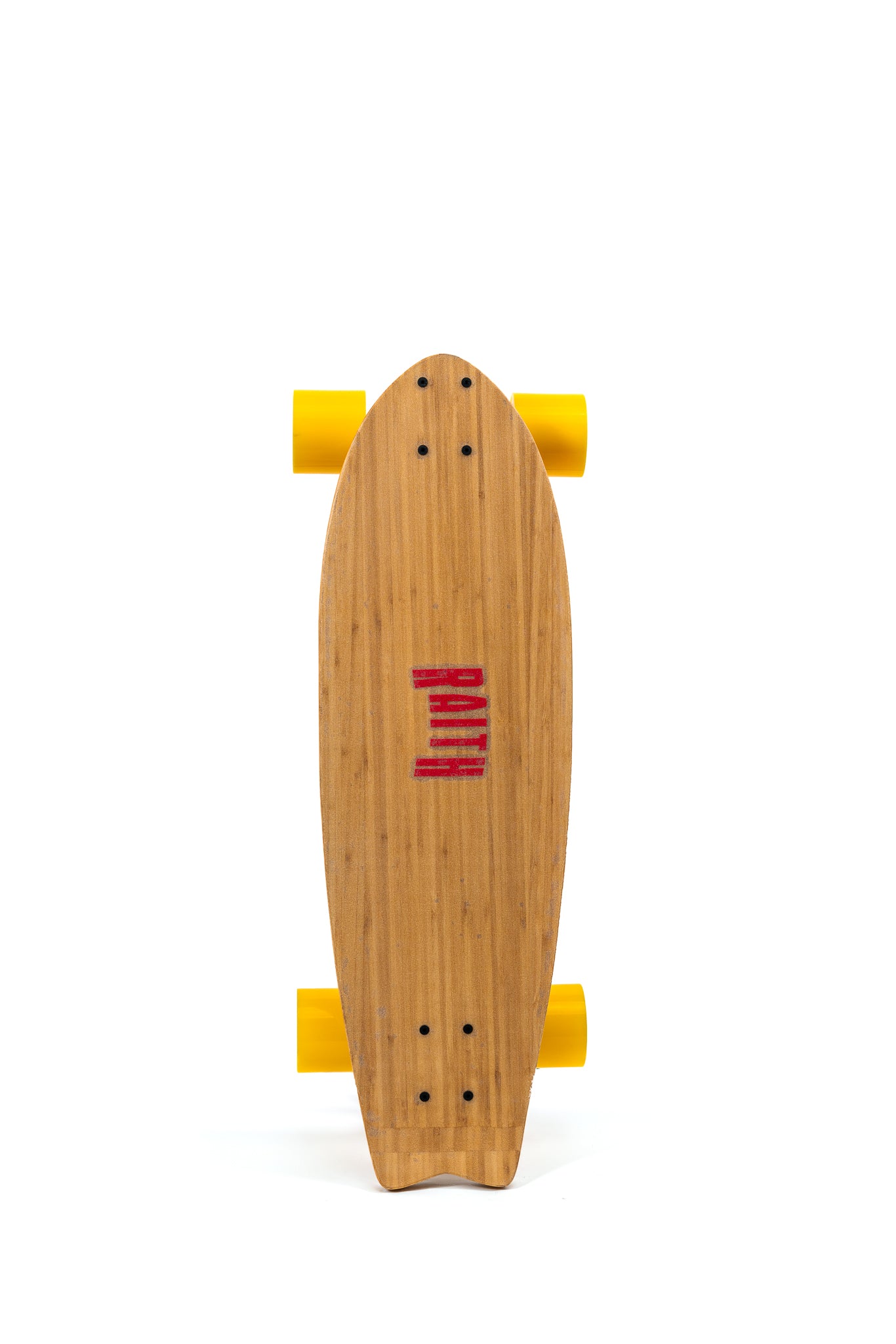

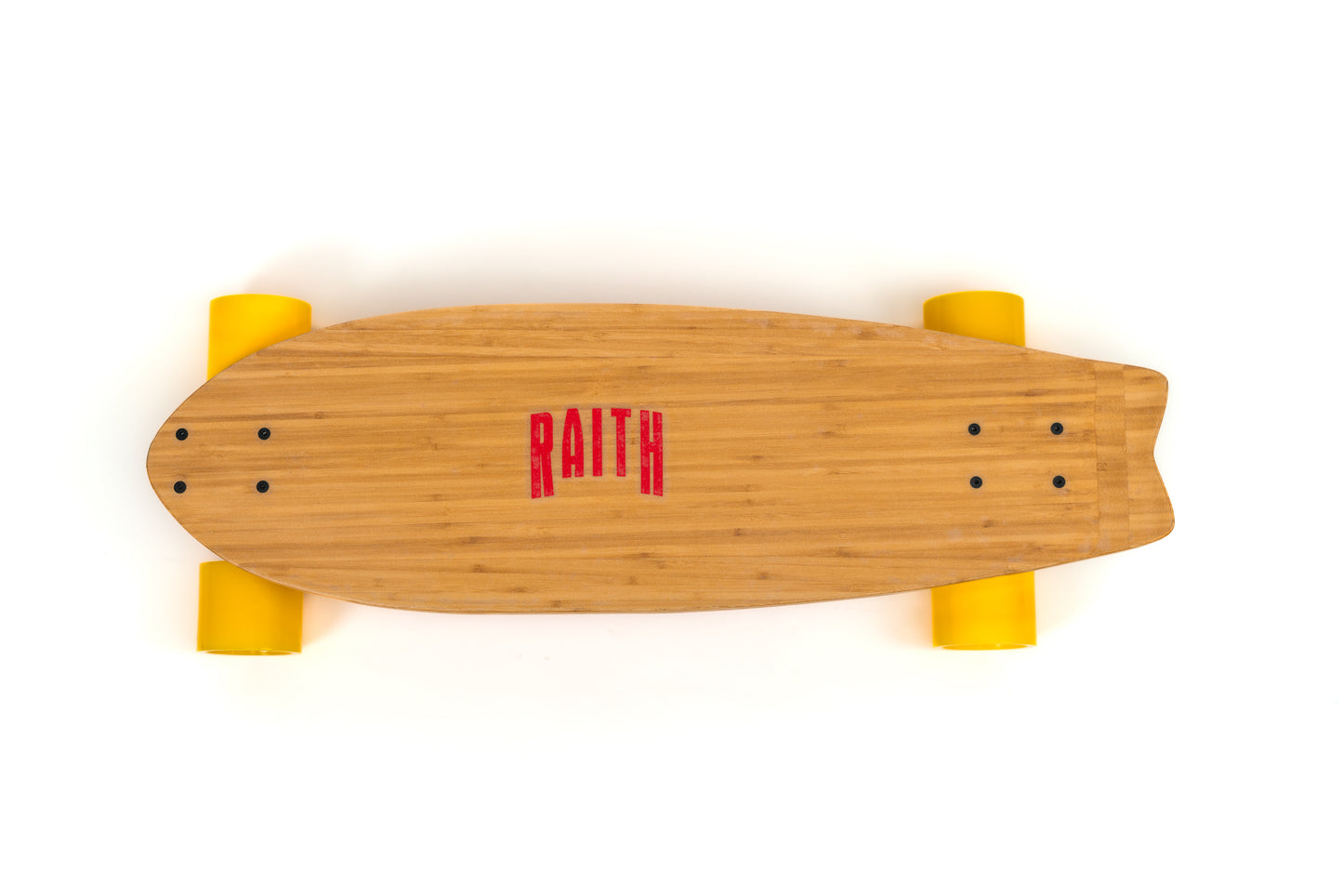

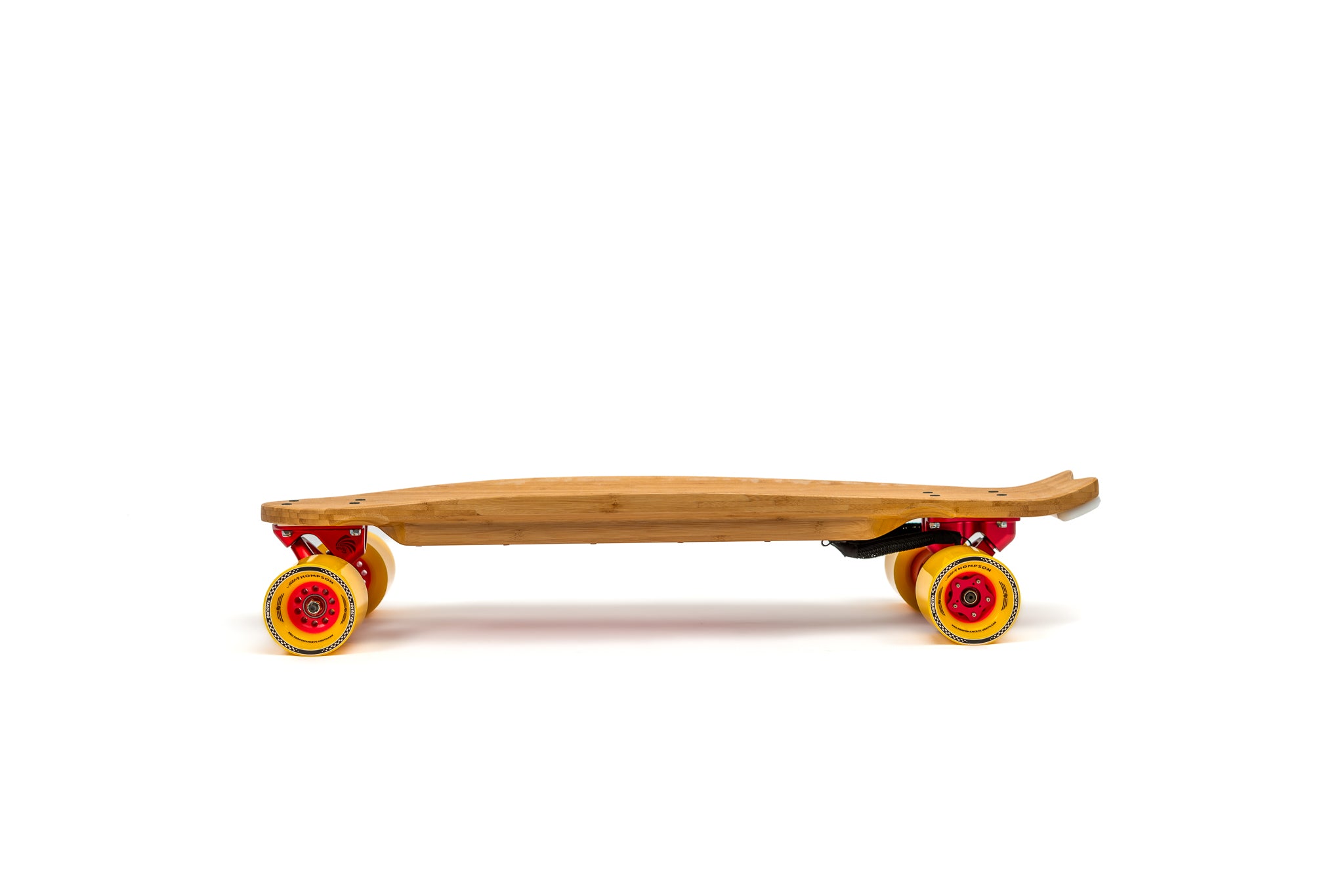

DECK MATERIAL: Bamboo with fibreglass reinforcement

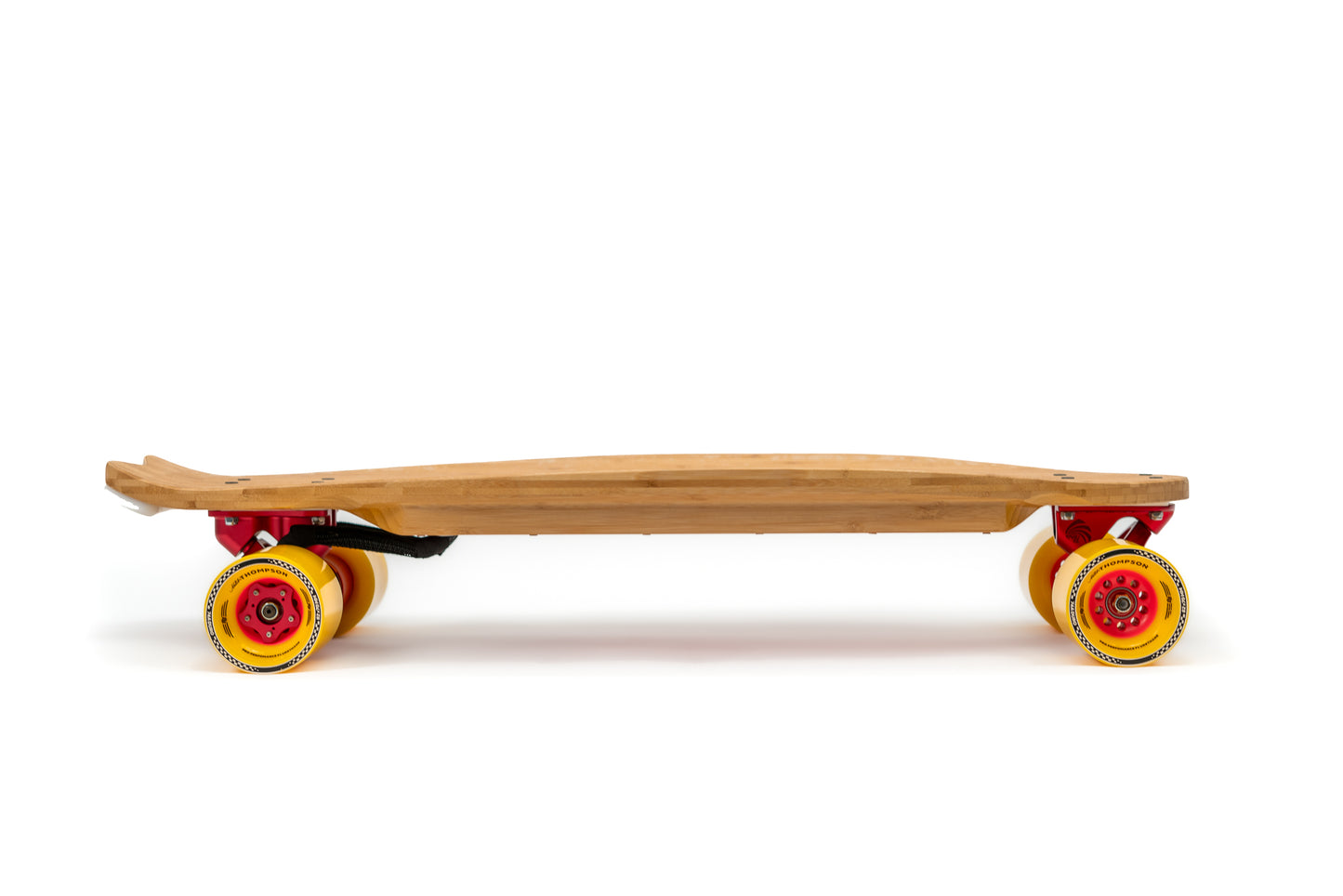

WHEELBASE (AXLE TO AXLE): 60.9cm (24 inches) DECK WIDTH: 9.5 inches

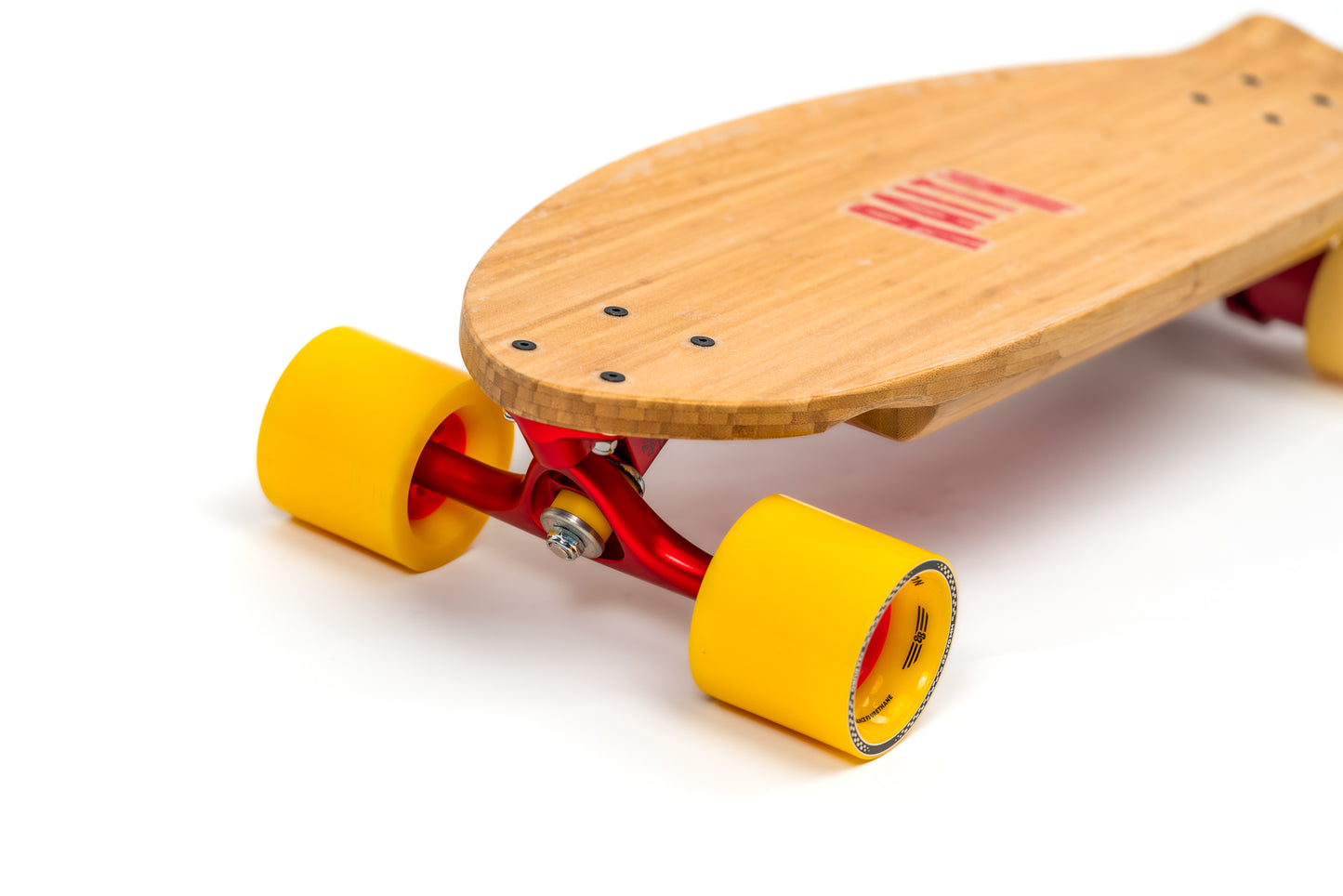

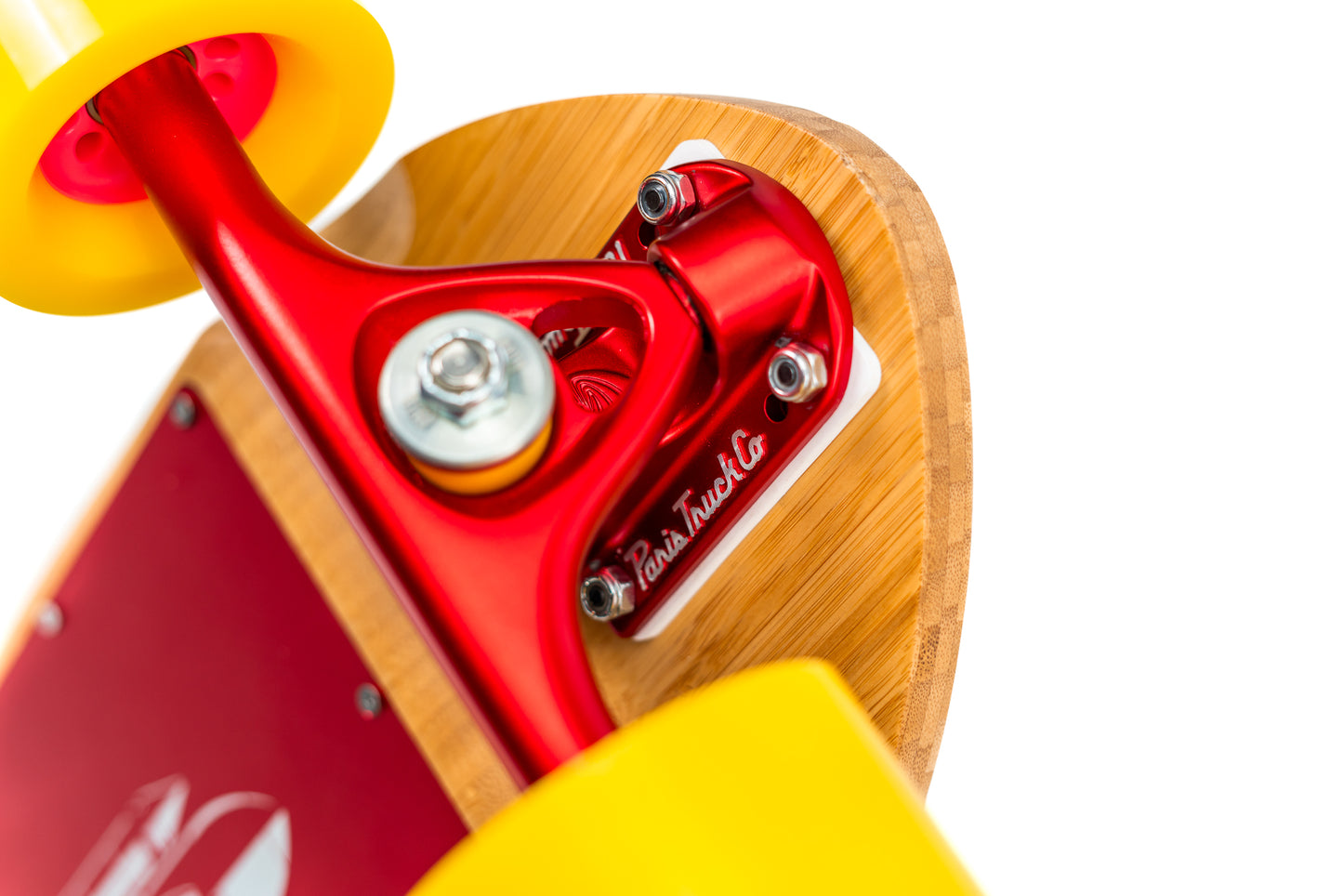

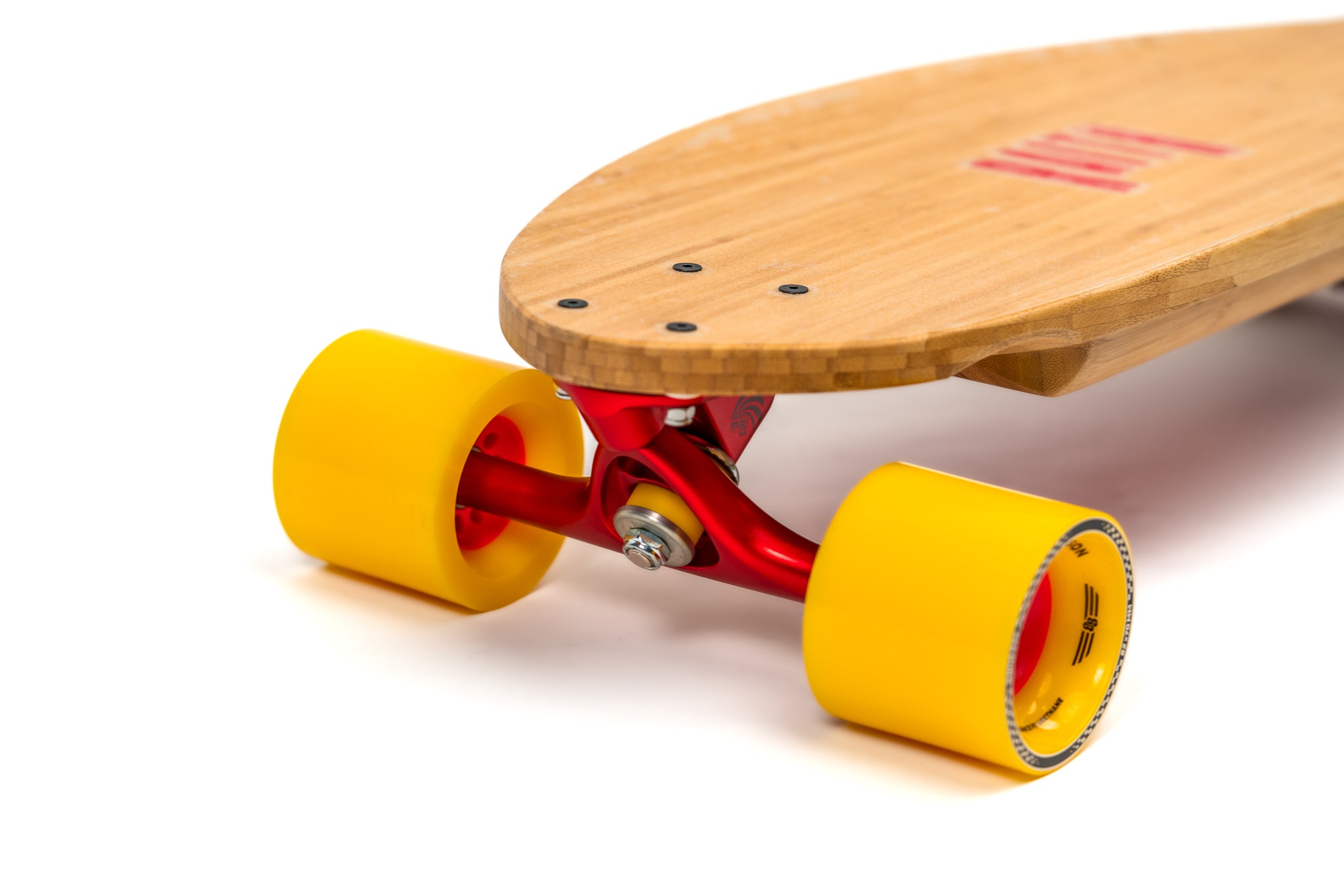

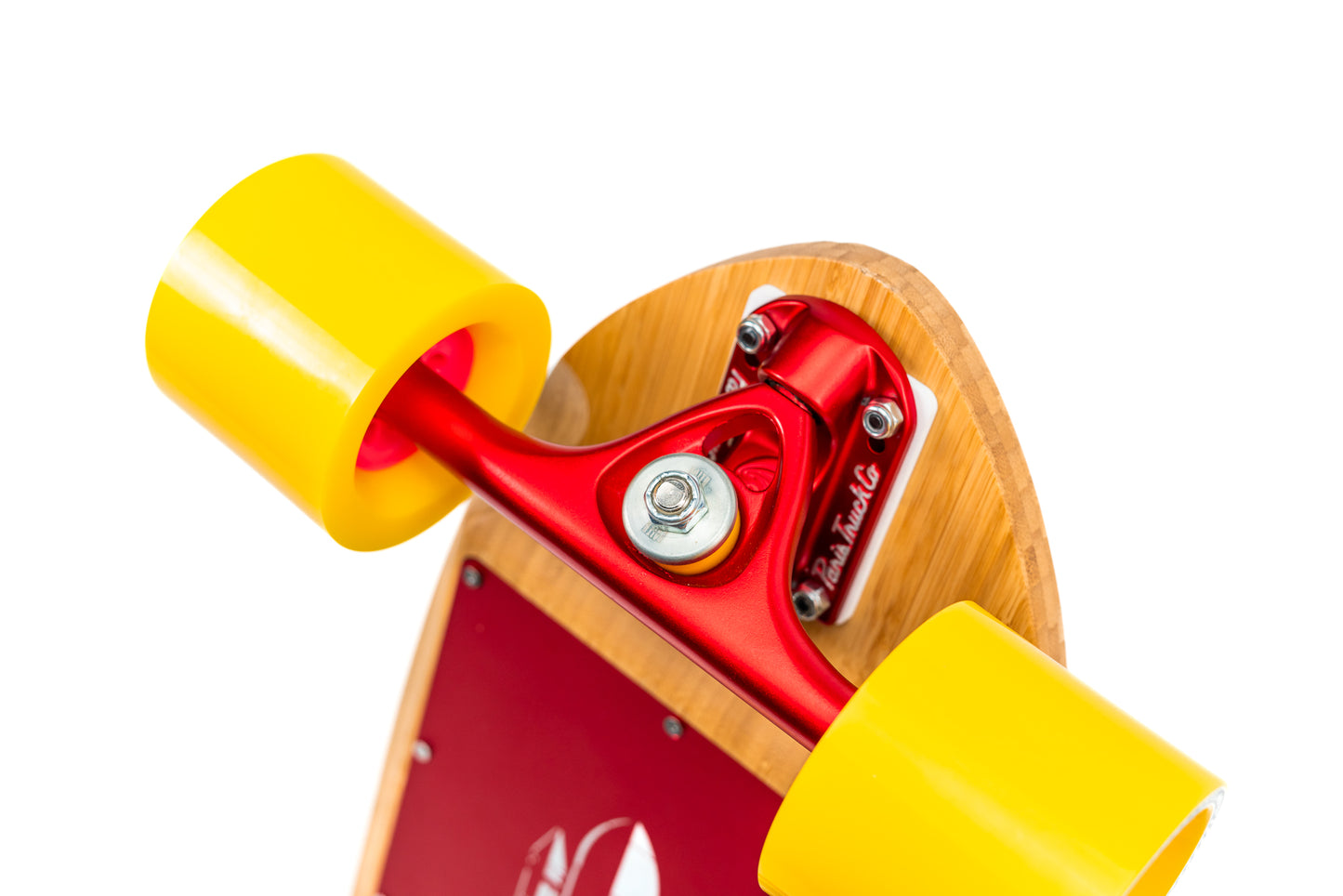

TRUCKS: 180mm Paris V3 Scarlett Red front truck. 180mm Patented Direct Drive Reverse Kingpin Scarlett Red Rear Precision Truck. 50 degree front and 42 degree rear truck base-plate angles. 90A Barrel Bushings.

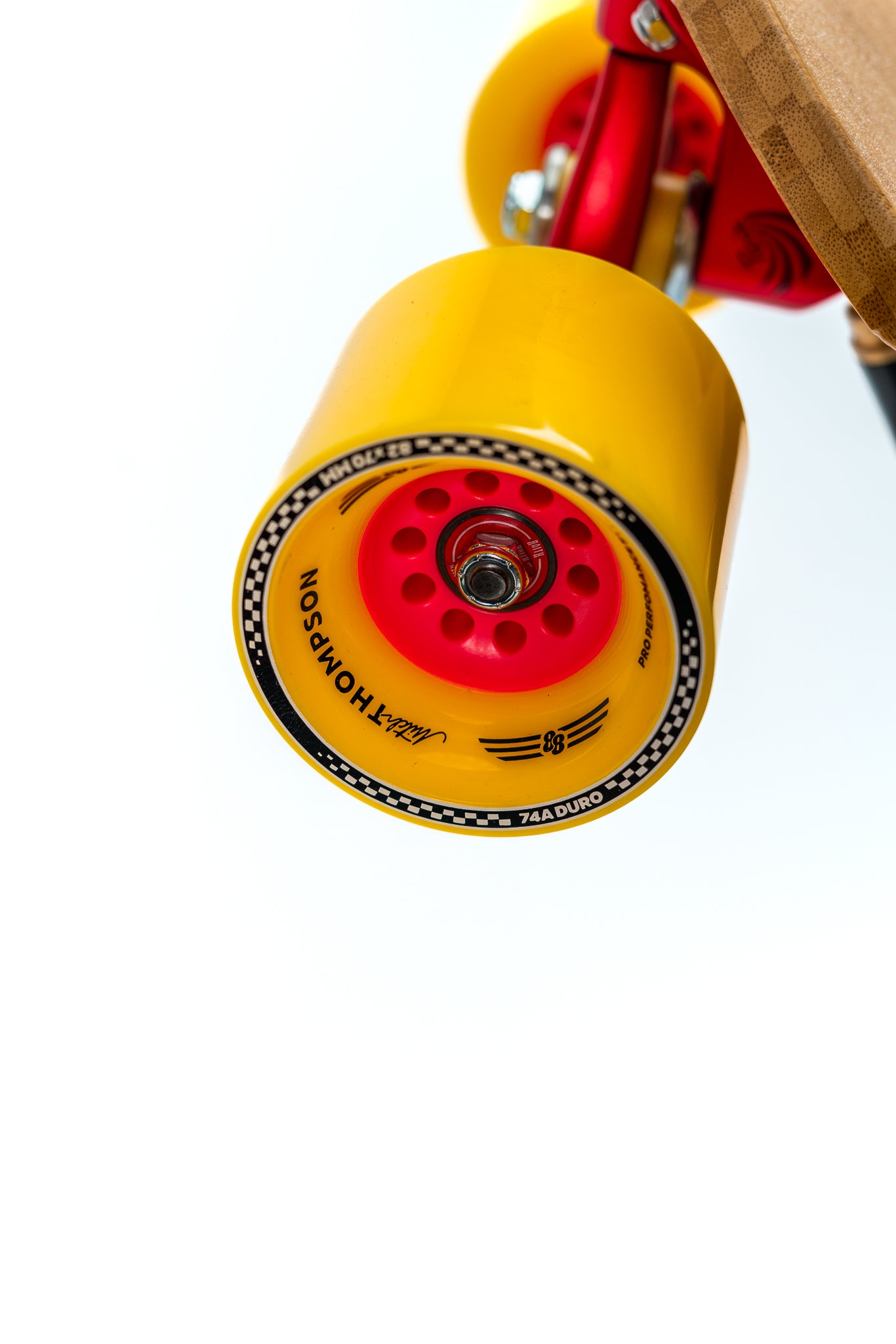

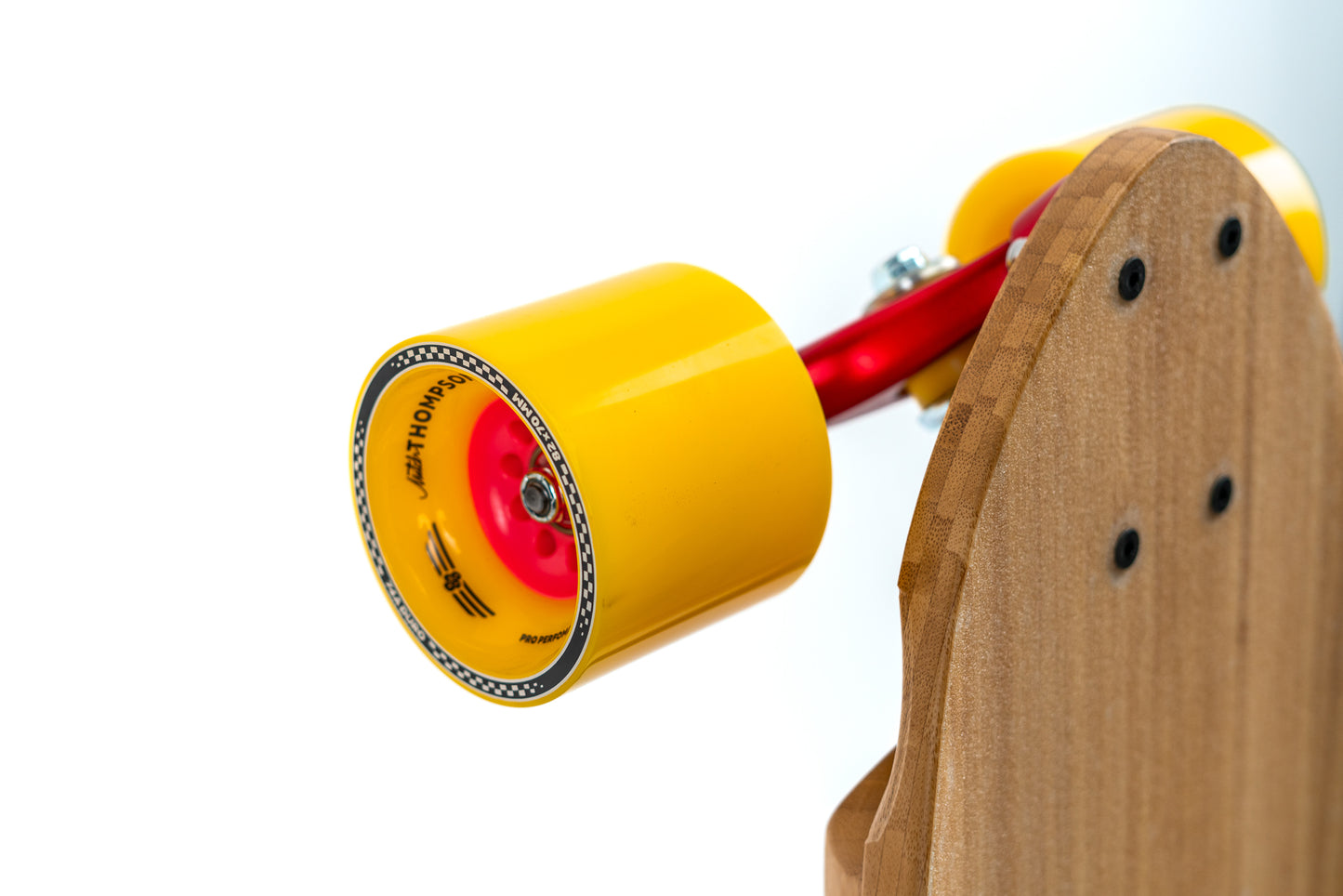

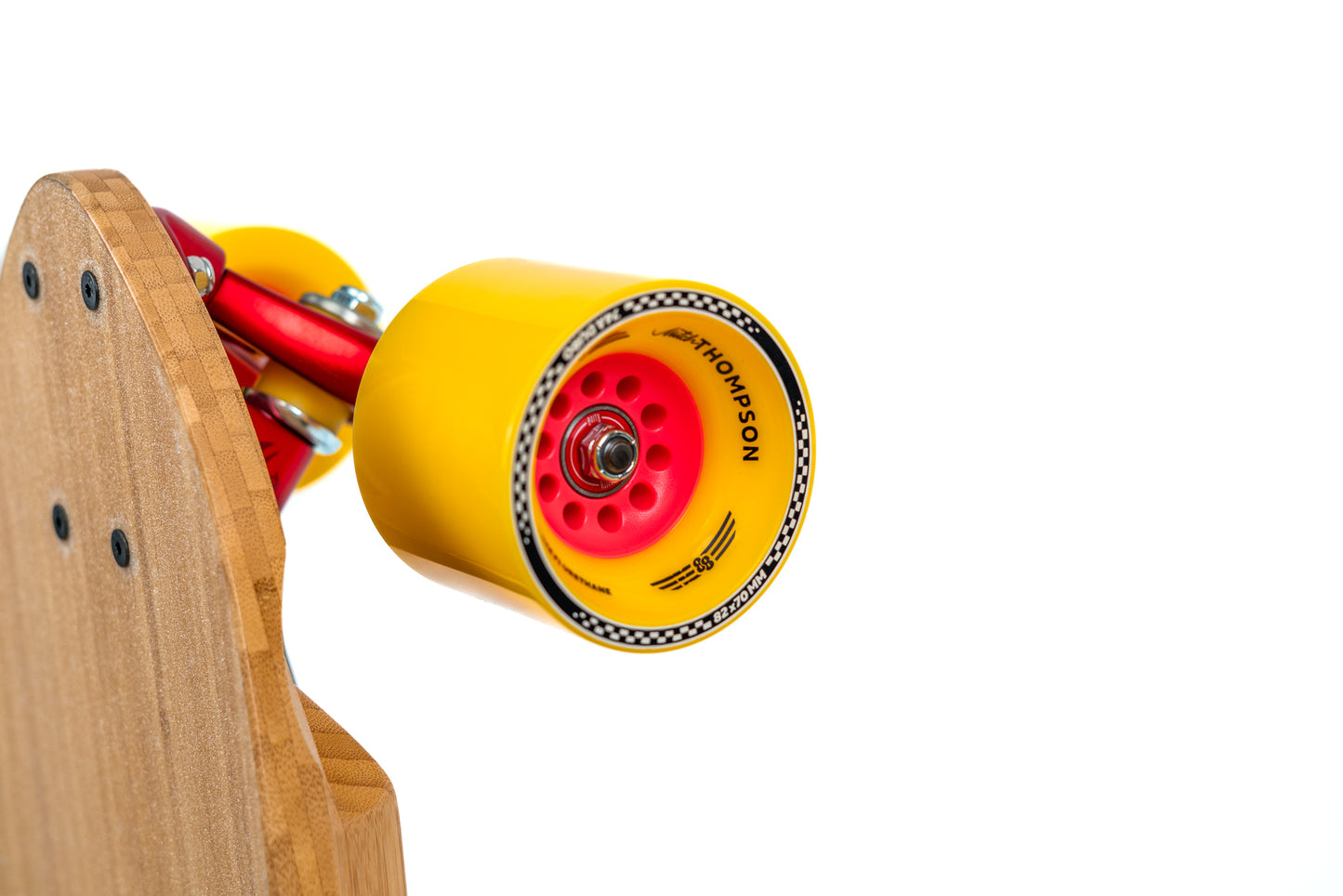

WHEELS: 80mm, 74a 88 Wheel Co. Maverick Pro Urethane Wheels

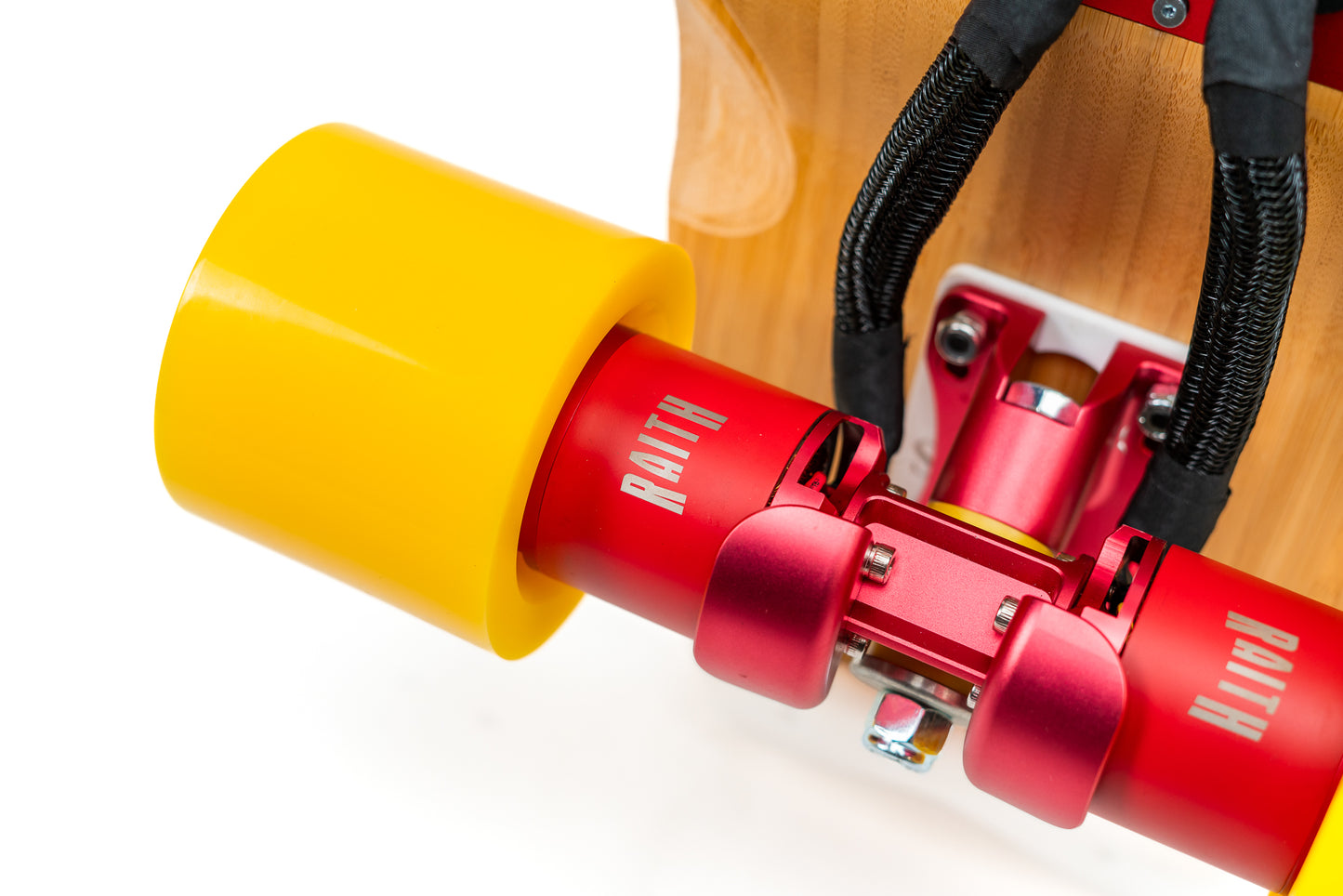

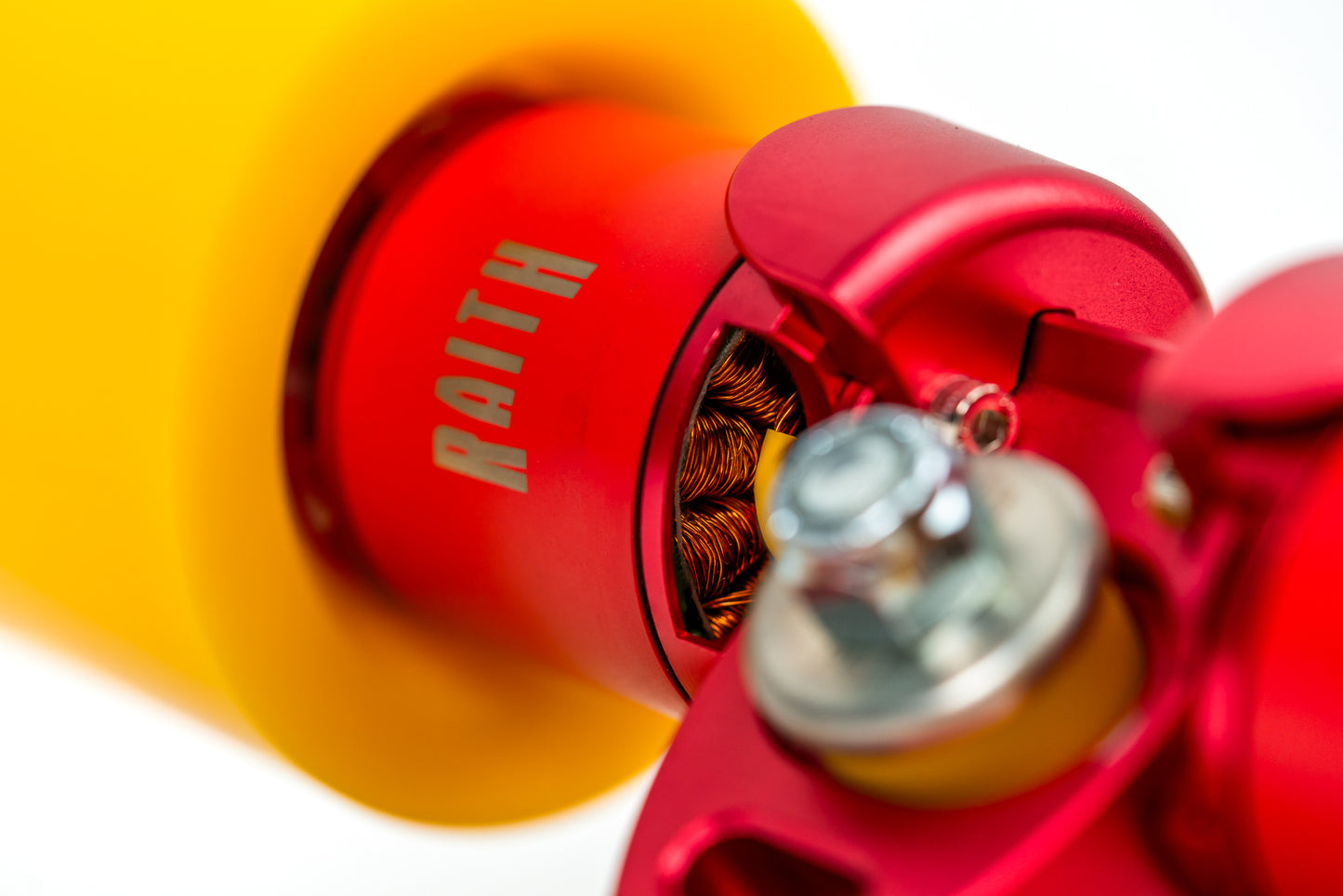

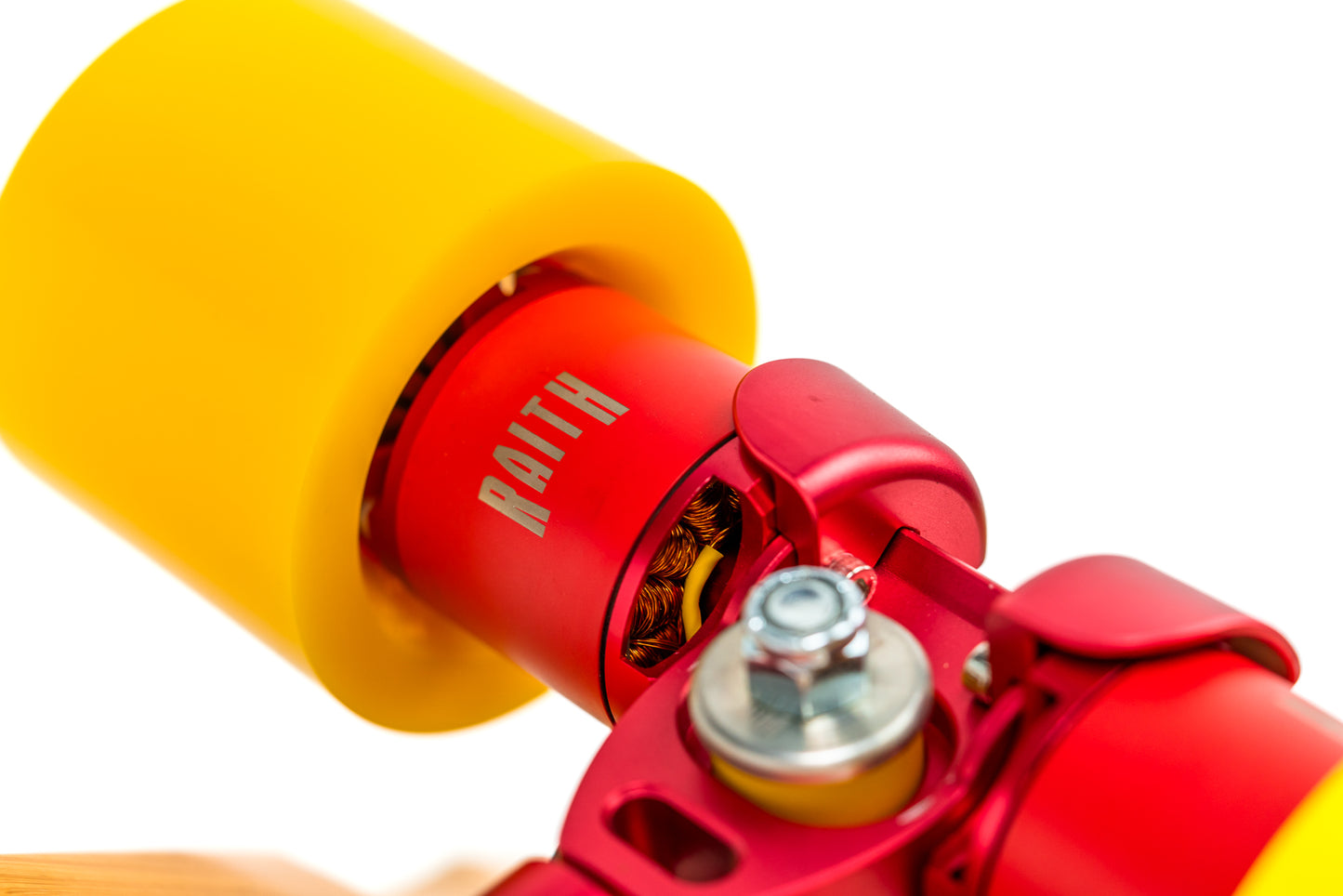

MOTORS: Dual 2400W-rated 5060 custom brushless sensorless motors
MOTOR CONTROLLERS/ESC: Dual 50A ESC, FOC motor commutation with HFI sensorless start.
BEARINGS: RAITH ABEC 9 precision steel ball bearings
BATTERY: 29.6V, 5AH, 144Wh custom built 8S1P configuration travel safe LiPo with custom BMS.
RECHARGE: 1hr
REMOTE: Patented Knuckle Duster remote with 3 torque modes
WEIGHT: 7kg
RANGE: 15-20km (9.3-12.4 miles) (weight dependent)
TOP SPEED: 36km/hr (22.4mph)
MAX LOAD: 100kg / 265lb
SUITABLE TERRAIN: Sealed surfaces- asphalt & concrete roads
SLIDES: Yes
BRAKING: FOC regenerative braking with smooth engagement
WHATS IN THE BOX
~ Your new Raith Rocket
~ Fast charger (5A)
~ Knuckle Duster Remote and micro-USB charging cable
~ Skate Tool
SHIPPING
Our boards are designed in Perth, Western Australia and assembled in China. Boards are available for purchase in a variety of countries including Australia, USA, Canada and most countries throughout Europe.
Australia: Ground shipped from Perth. Free shipping within Australia.
United States and Canada: Ground shipped from Florida. Free shipping within USA and Canada.
Europe: Ground shipped from Germany/Netherlands. Free shipping within Europe.
USER MANUAL
Download Raith Rocket Bamboo User Manual
